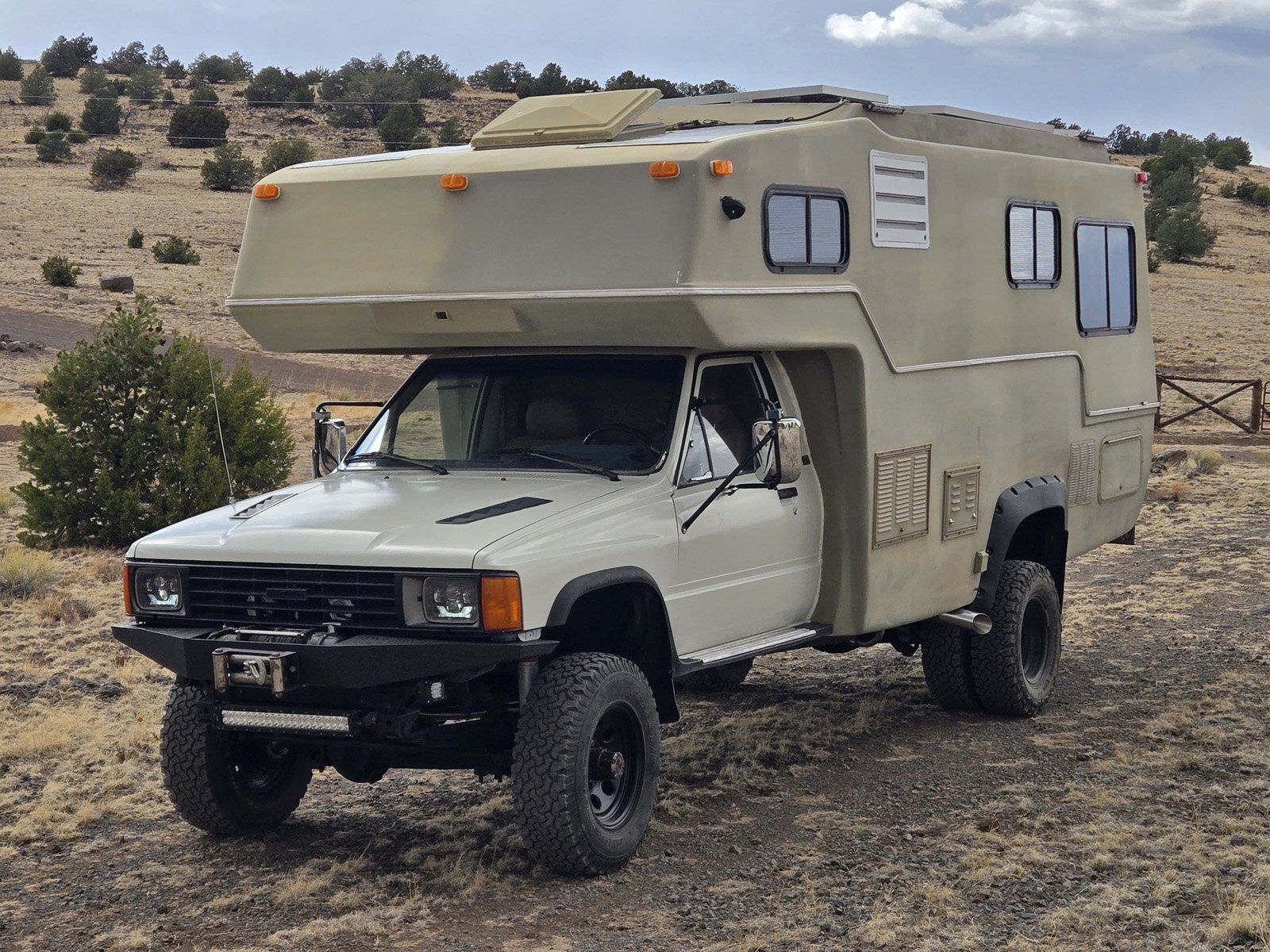

1985 Sunrader 21ft Shell

85 Toyota pickup 1 ton

5.7L Chevy V8, 350 210 hp, 300 lb-ft TBI

700R4 4 speed automatic, 4×4, Highl/Low

80k miles on new drivetrain

Clean Ca title. No accidents. No rust

4×4 Frame off conversion

Before the coach was turned into a 4×4, extensive reinforcements were made to every part of the Rv. The coach was lifted off the frame where the frame had multiple subframes welded that extended to all corners of the coach. Connecting the coach to the frame are now 4x as many lag bolts connecting frame to coach then was originally was done by Sunrader. The Main toyota box frame was reinforced with C channel towards the middle and an extensive hitch system. The coach floor was remade with 2x 1/2 grade B plywood and closed cell foam insulation then sealed and moisture proofed with deck liner. The connection from the coach to cab was remade with new stainless steel screws and recarpeted for insulation. Custom leaf packs were made that lifted it about 6″. For customized support New 5k air bags were added which gave the rv more clearance and stability specially when loaded. The front end was converted to an FJ80 suspension and straight axle with 4.10 gearing. Custom parts include a rear driveshaft, a 15 gallon fuel cell, 2″ rear hitch with a rear swing out tire carrier, a set of 15″ dually rims with stock lug pattern as well as a spare with new all terrain tires. (15″ wheels have better selection of tires and are cheaper, they also have better hwy speeds and mpg). Some of the Off-road gear includ Off-road rear fenders, husky front and rear mud flaps, DC air compressor ( for airing down tires and air bags), Warn plate steel front bumper, 9.5k winch with a 200ft steel braided, an external remote and interior controls, 2x Rotopax lockable external gas tank capacity.



Coach rebuild

The original Sunrader particle board Interior was completely removed and renovated using Walnut, Cherry and Bamboo. The interior was completely tore down and reinforced, insulated and sound proofed. The floors were rigidified with 1.5″ plywood with 1/2 insulation and were even epoxied and vyniled. The plastic overcab windows, a large source of heat loss and are prone to water leakage have been fiberglassed over and the overcab area turned into a twin bed with a large storage behind it which further isolates/insulates the interior and blocks out heat transfer. The kitchen counter is a fossilized bamboo counter top with a jumbo 30″ stainless steel sink set in. The original stove/oven is refurbished and garnished with a raw copper plate as a backsplash. For insulation, closed cell non toxic foam board was used with real 1/8 oak plywood for the walls. Isolated lighted rear cargo area. Max interior height in the dropped floor basin is 6′ and the rest of the RV is 5,9. There is no stationary toilet inside.



Cab rebuild and Upgrades

The cab was completely torn down and redone from the inside out. All the screws connecting the cab to the shell were replaced with stainless. The carpets were stripped and re done with New double insulated all weather vinyl floors. The doors, and walls were all stripped down and reupholstered.

10 way sports power leather bucket seats using all the same factory mounting holes. Keyless entry remote door locks that make entry seemless.

Windows upgraded from crank to power windows.

Headlights upgraded to projector led driving lights with daytime running lights and integrated turn signals.

Led light bar with flood and spot lights faces forward while two led light pucks face east/west.

Led high visibility led tail lights.

Regular horn plus the option to use a high decibel air horn

Power mirrors

Back up camera with infrared mounted high for great visibility.

Stadium lights, slim led ballasts all around the RV that light every side around the RV.

Awning Led strip (switched)

Lighted front entry door handle, under main door lighting the steps, (switched and sensored) under both cab doors (sensored).

New 12v cab Air conditioner.

Sound system

New Android based touch screen media player with Aux, USB and Bluetooth, Wifi, Usb, apple and android car play. Behind the driver’s seat is a 350W New Subwoofer Amp combo that offers immersive sound and New 6×9 custom door speakers for mid notes and highs. System sounds awesome!



Appliance/Utilities

Upgraded (5)gallon tank propane with regulator and level meter.

New 3 way absorption fridge AC/LPG

New 5 gallon Atwood hot water heater

Upgraded electric element on water heater (make hot water with solar power)

Original Wedgewood 3 burner stove with oven combo refurbished and soundproofed.

Expandable Oak countertop

A 26″escape hatch/vent was added with a custom aluminum welded garnish.

Dual RV roof vents that both Intake and exhaust with a multi speed motor.

New 5K BTU Inverter air conditioner with remote (works completely and quietly off solar)

Wave 3 catalytic propane heater. (Very efficient)

Secondary 12v fuse box you can customize or add more circuits easily.

Upgraded Double RV step. The outside propane compartment also has 12v and 110v access.



Security systems

New Viper alarm 3-Channel 1-way Security System with Keyless Entry 4-Button remotes. Additional options include remote starter & GPS Tracking. FailSafe starter kill. Anti-carjacking & Panic Alarm

Revenger six-tone soft-chirp siren and parking light alarm response.

New 4k camera monitoring system, 4x 1080p cameras located on each side of the RV, HD touch screen monitor inside, records onto a 32g SD card continuously day and night (IR).



Electrical/Solar system (Sun)rader…

All New solar system consists of 1000 watts of solar panels to power nearly every appliance including the coach Air conditioner, water heater, and the fridge. The solar system is completely automatic. The system includes, 1000w (4x200w & 2x100w panels) solar panels, 50a MPPT charge controller with a panel monitor read out, 2000 Pure Sine inverter, Intellitec 60a shore battery charger, dedicated 12v USB chargers and battery level indicator. Running the Air conditioner in the daytime is a breeze and doesn’t even tap into the battery reserves. You could charge e-bikes or use power tools or electric chainsaws… All 110v outlets in coach are usable as if the RV was plugged into shore power. Almost everything except for the stove and heater work off the solar. All upgrades/electrical work is marine grade. All wiring is upgraded to thicker awg with spare runs for future upgrades. This Sunrader is equipped with an alternator charging circuit for when the vehicle is turned on it bulk charges. On top of that I’ve added a trickle circuit that can be left on that is mostly for the solar battery to charge the engine battery. This is so the user can use the car sound system as well as the stadium lights, can put the windows down anytime without worrying about the car battery going down.



Water systems

New 30″ Stainless steel sink, with built cutting board, built in dish rack and a built in produce washing strainer.

New Stainless steel Moen faucet with extendable head

New Shower box with hot and cold water (reaches inside or out)

New Stainless steel city water connection.

New Heated 14 gallon Grey holding tank with

New Valterra electric auto dump. (Dumps with a press of a button from the driver seat)

40 gallon In frame mounted fresh water tank, heated, armored.

New Valterra Central automatic on demand 12vwater pump.

New Atwood 5 gallon auto lighting hot water heater, with electric heating element

Built in dropped shower floor and indoor outdoor shower tent.

New Rear garden hose attachment with quick connect (hose down RV after mud session ect)

New Separate water pump hook up to allow to pull water from a stationary (non pressurized source), eg: exterior water tank, pond, river, ect.



Exterior rebuild/ upgrades

Upper cab problematic windows professionally fiberglassed over and deleted, an interior storage compartment was built in upper cab to further insulate the interior of the RV.

Lighted Double front entry step

Rear tail lights upgraded to modern led based lights with integrated signals and reverse lights.

Lighted Stainless steel entry grab handle

A&E crankless quickdraw awning

Dual 2.5Gallon Pax lockable fuel storage secured with aminimum plating through the fiberglass.

Compartment door for propane compartment was upgraded to thicker louvered steel.

Swing out tire holder with hitch pin holder, full size spare matching wheel with chrome protective shell and a self supporting exterior table, with adjustable mount points and a storage net. 3 point rear bumper for hauling or accessorising. Frame leading to the tow hitch was doubled up with stainless steel tubing for extra support. A dual drop down hitch attachment is added to maintain access while the the swing out carrier is closed. Exhaust was shortened to protect water tanks, heat remediated with fiberglass and added a stainless tip for aesthetics.

Mechanics and maintenance

The transmission has been rebuilt and bulletproofed.

New power steering pump

New 12v Compressor AC system

New Chevy 4 wire 220 amp alternator

New gearbox with long arm travel.

New front brake calipers

Pillar gauge set (3x)

New starter, starter selanoid, relay.

Dual radiators

Main radiator flushed out by a radiator shop, added New Dual low profile pusher electric fans.

New secondary stainless steel radiator with stainless ribbed lines and dual electric pull fans.

New high flow Elderbrok thermostat

New Davie Programmable coolant sensor to control radiator fans.

New coolant, Front and Rear diff fluid.

Celica hand ebrake conversion

2x transmission Radiator and 2x1000cfm electric fans

K&N engine lifetime filter (just hose down and reuse)

New 25 gallon fuel tank, new armored fuel fill hoses

4x Gas adjustable Rancho shocks

(6) New All Terrain LT BF Goodrich tires

Grease points serviced on driveshaft and front tie rods.

Frame was in great shape to begin with but the factory paint had worn off. It was coated with phosphoric acid to remove the orange patina and painted with black epoxy.

All electric wires running under the frame are loomed for protection.

I’m selling to help build a conversion shop in Western NM

RV is located in Western NM 1 hour away from Show Low regional airport.
